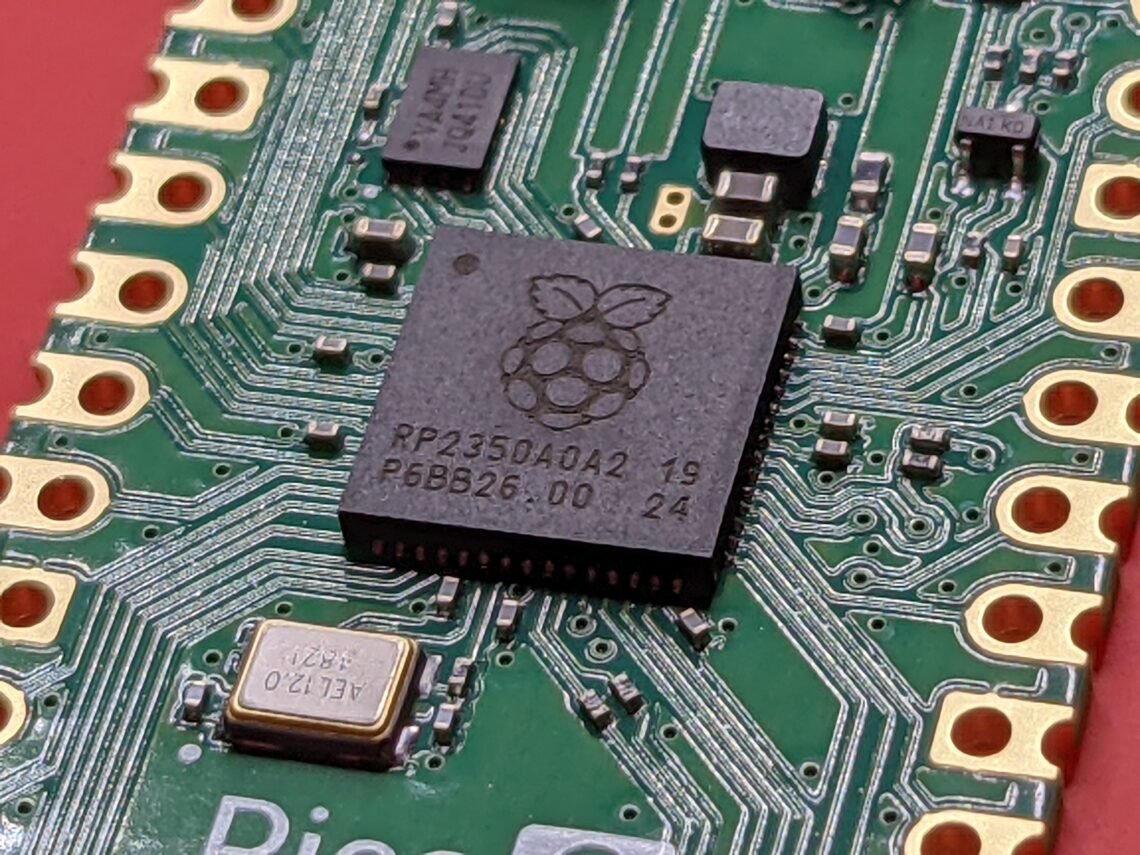

Programmable Multi-Angle Lighting and Edge AI Inference: Redrawing the Limits of PCB Micro-Crack Detection

The scariest defect on a PCB surface-mount (SMT) line isn’t the one you can see — it’s the micro-crack that gets buried in shadow under a single lighting angle and missed by the camera. A 30–50 µm-class hairline crack on a solder-fillet surface only comes alive in contrast at specific angles of incidence on that strongly specular, glossy solder surface, and at every other angle it gets buried in background noise. A line inspecting with only a single ring light or fixed-angle lighting lets this crack slip through undetected into the next process, and the result comes back as a far larger bill in the form of field defects and recall costs.

The direction of the solution is clear. Instead of sticking to one fixed lighting condition, the shift is to program the lighting itself into a sequenced, multi-channel system and pair it with a structure that judges the result immediately at the edge. Below, we look at how the combination of recently released multi-angle programmable lighting equipment and edge AI inference hardware is redefining the problem of PCB micro-crack detection.

Why Surface Material Has to Be Checked First

Optical setup design for PCB inspection starts with checking the target surface’s material and reflectivity. Even on the same board, exposed copper pads have strong specular reflection, solder mask (green/black resist) is closer to diffuse reflection, and the solder fillet itself is a highly glossy curved surface where the highlight position shifts significantly with angle of incidence. Because all three materials coexist within a single field of view (FOV), no single lighting angle can achieve optimal contrast across every region at once.

In practice, the industry has generally settled on separating lighting modes by role: low-angle (grazing) dark-field illumination to catch scattered light at crack boundaries, and coaxial epi-illumination to catch defects on flat areas. More recently, systems have appeared that cycle through lighting modes at 50 times per second using a 32-channel independently controlled light source, switching between grazing-ring (dark-field), coaxial (bright-field), diffuse dome, and backlight within 100 ms while sequentially capturing a single part from multiple angles. In other words, the starting point for multi-angle lighting setup design isn’t “which lens to use” — it’s defining what reflective characteristics the surface has, first.

How Edge AI Inference Digests Multi-Lighting Data in Real Time

What multi-angle lighting ultimately produces is more frames. If you’re acquiring 4–8 images per part within 100 ms, the judgment algorithm has to digest that much throughput within line speed, and cloud round-trip latency is fundamentally incompatible with this condition. Industry outlooks indicate that, as of 2026, a substantial share of industrial vision inference is shifting toward local processing at the edge — a choice made to solve communication latency and data-egress concerns at the same time.

On the hardware side, M.2 form-factor AI acceleration modules delivering sub-100 ms latency at sub-10W power have become the standard configuration for industrial vision, and on the algorithm side, YOLO26 — released by Ultralytics with an edge-first design — and an improved YOLOv10 family specialized for PCB defect detection (3C-YOLOv10n) report 4–5.5 percentage points higher accuracy and roughly 7% lower computational complexity compared with existing YOLOv5/v8. The “better raw image” that multi-angle lighting produces only translates into an actual detection-rate improvement when it’s backed by a lightweight model that can digest it in real time in edge AI vision inspection.

Keeping the Camera Interface From Becoming the Bottleneck

Multi-lighting, multi-frame capture raises the bandwidth requirement across the camera-to-frame-grabber segment. Particularly with an 8–25MP-class sensor cycling through several lighting modes per second, standard GigE bandwidth can become the bottleneck, so the evolution of the interface standard itself has a real effect on actual inspection speed. The GigE Vision technical committee ratified GigE Vision 3.0 in April 2026, and around the same time a 25GigE-band RDMA camera won a Vision Systems Design innovation award — high-bandwidth GigE-family cameras are evolving in a direction that supports multi-frame, multi-lighting inspection architectures.

However advanced the lighting and algorithm get, if interface bandwidth can’t keep up with acquisition speed, multi-angle capture itself becomes impossible within the line’s takt time — this has to be confirmed at the very start of setup design.

Core Skeleton Standard (Matching Table)

Item	Spec
① Minimum defect size to detect	Solder-fillet hairline crack 30–50 µm / lifted pad 80 µm or larger
② Optical setup — lighting condition	Grazing dark-field (10–15° incidence) + coaxial epi-illumination sequential switching, mode-switching cycle ≤100 ms, multi-channel (e.g., 32-channel class)
② Optical setup — lens spec	Telecentric or quasi-telecentric lens, 25–50 mm focal length, WD (working distance) of 60–100 mm secured
③ Algorithm parameters	Based on a lightweight YOLO family (improved YOLOv10 or YOLO26), input resolution 640–960 px, inference latency ≤100 ms, inference power ≤10W (on an M.2 acceleration-module basis)

Implication: The smaller the target defect size drops below 50 µm, the more lighting modes and frames are needed, and absorbing that increase within line speed requires camera-interface bandwidth, edge-inference latency, and lens WD to all line up at once. Design any single one of these three axes to a high spec while neglecting the others, and overall system performance converges to whichever segment is the bottleneck.

Reservation: On a diffusely-scattering material like a solder fillet, where curvature and gloss are mixed together, the response at each lighting angle can vary subtly lot to lot, so the parameters above are only an initial design baseline and cannot be confirmed before sample testing. They must be finalized only after measuring contrast and false-detection rate on an actual production lot.

Field Checkpoints

Is WD (working distance) secured?: Confirm in advance whether there’s physical space to place a multi-angle lighting module around the lens, and whether the lens-to-target WD interferes with the lighting housing.
Simulate whether the lighting mode-switching cycle (ms) matches the line’s takt time.
Measure whether the camera-to-frame-grabber segment’s bandwidth actually handles the multi-frame acquisition volume.
Confirm whether the edge-inference module’s power and heat generation match the enclosure’s heat-dissipation conditions.
Establish a schedule for re-measuring reflectivity and recalibrating lighting conditions whenever a new lot is introduced.

Reference Trends

GigE Vision 3.0 standard ratified (April 2026) — the GigE Vision technical committee ratified a high-bandwidth camera-interface standard, contributing to resolving the bottleneck in multi-frame acquisition architectures.
LUCID Vision Labs Atlas25 (25GigE RDMA) wins gold at the 2026 Vision Systems Design Innovators Awards — high-bandwidth GigE cameras are emerging as the hardware foundation for multi-angle, multi-frame inspection architectures.
Improved-YOLOv10-based PCB defect detection (3C-YOLOv10n) — reports 4–5.5 percentage points higher accuracy and roughly 7% lower computation compared with existing YOLOv5/v8, securing real-time performance under edge-inference conditions.
